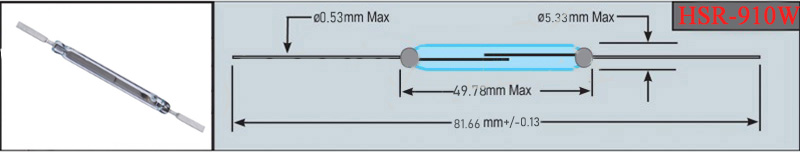

HSR-910W

Contact Form 触点形式

Form A

Original Package  原厂包装

pcs

Electrical parameters  电气参数

Switching Power(Max.)  最大开关功率

W

50

Switching Voltage DC (Max.)  最大开关电压

V

4000(AT 60-125)

5000(AT 100-150)

6000(AT 140-170)

Switching Current (Max.)  最大开关电路

A

3

Carry Current DC (Max.)  最大负责电流

A

4.5

Breakdown Voltage (Min.)  最小击穿电压

V

7000(AT 60-125)

10000(AT 100-150)

15000(AT 140-170)

Contact Resistance (Initial Max.)  最大初始接触电阻

Ω

0.1

Contact Capacitance (Max.)  最大接触电容

pF

1

Insulation Resistance (Min.)  最小绝缘电阻

Ω

10¹⁰

Operating Parameter 工作参数

Operate Range  动作灵敏值

AT

60~170

Operate Time (Max.)  最大动作时间

ms

3.2

Release Time (Max.)  最大释放时间

ms

1.5

Operating Frequency (Max.)  最大工作频率

Hz

-

Operating Temperature Range 工作温度范围

℃

~40℃—125℃
