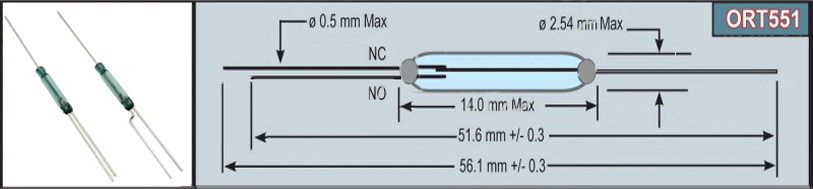

ORT551

Contact Form 触点形式

Form C

Original Package  原厂包装

1,000pcs

Electrical parameters  电气参数

Switching Power(Max.)  最大开关功率

W

3

Switching Voltage DC (Max.)  最大开关电压

V

30

Switching Current (Max.)  最大开关电路

A

0.2

Carry Current DC (Max.)  最大负责电流

A

0.5

Breakdown Voltage (Min.)  最小击穿电压

V

150

Contact Resistance (Initial Max.)  最大初始接触电阻

mΩ

100

Contact Capacitance (Max.)  最大接触电容

pF

1.5

Insulation Resistance (Min.)  最小绝缘电阻

Ω

10⁹

Operating Parameter 工作参数

Operate Range  动作灵敏值

AT

10~30

Release Range  复位值

AT

5

Operate Time (Max.)  最大动作时间

ms

1

Bounce Time (Typ.)  弹跳时间

ms

NO 1/NC 1.5

Release Time (Max.)  最大释放时间

ms

0.5

Resonant Frequency (Typ.)  响应频率

Hz

6000^±4000

Operating Frequency (Max.)  最大工作频率

Hz

200

Operating Temperature Range 工作温度范围

℃

~40℃—125℃
